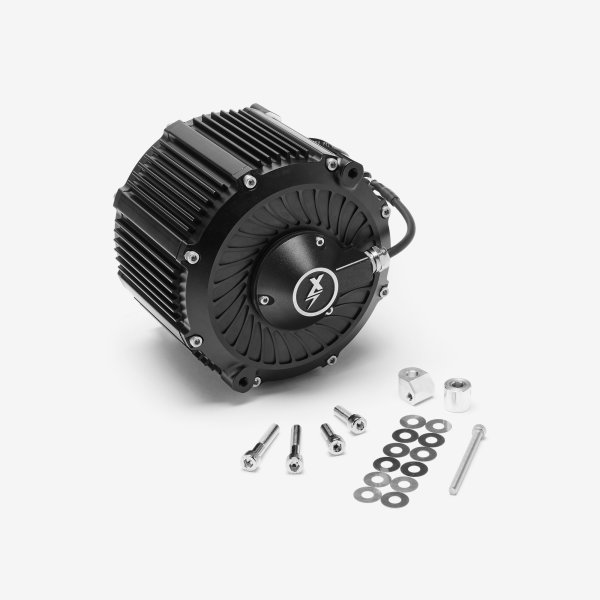

SURRON ULTRA BEE EBMX XUB 80 MOTOR – High performance motor upgrade for your Surron Ultra Bee. Comes as complete kit ready to fit.

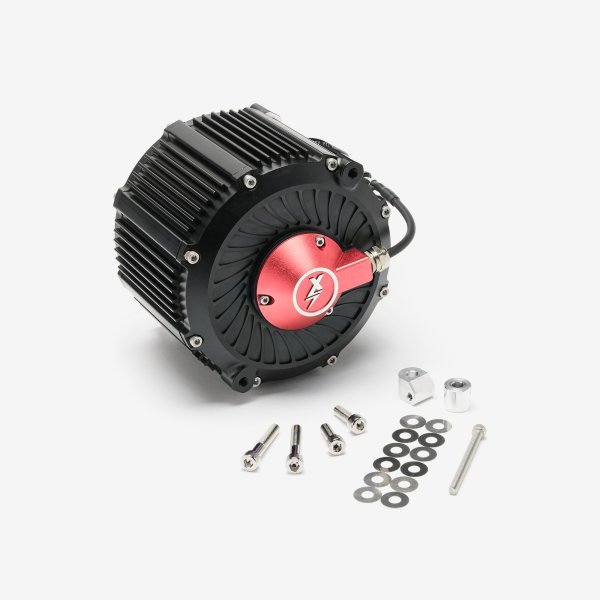

Available in 4 different colour caps.

Slightly bigger with an 80mm Stator thickness and more powerful than its little brother the XLB-60.

40KW rated & designed from the ground up to handle the heat, 180C rated windings with U42H magnets.

Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 12000 RPM.

Encoder based motor control for increased low end torque response and smooth predicable power delivery.

Built to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.

The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.

In contrast to many of our competitors who utilize hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a “sensorless” manner. However, during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments, hall sensors angle detection can result in substantial current spikes in the controller. This can pose significant issues for many controllers, leading to tripping and loss of throttle power, although this is less prevalent in the X-9000.

Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.

EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller.

Code: MTR018

PLU: 40109

Current Type: DC

Manufacturer Warranty: Lifetime

Maximum Power: 72 V

Maximum RPM: 10001 RPM – 15000 R

Mounting Style: Clamp-On

Peak Torque: 0 Nm – 500 Nm

Performance Part: Yes

Reference OE/OEM Number: 116000117

Type: Drivetrain Motor

Universal Fitment: No

Voltage: 72 V
