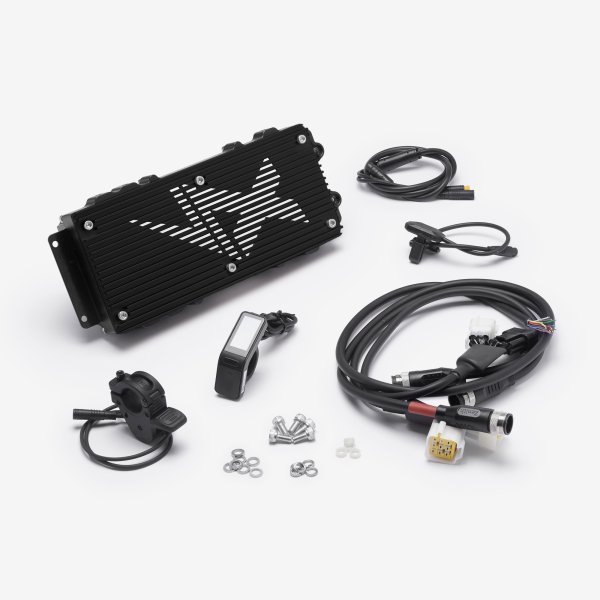

SURRON ULTRA BEE EBMX X9000 CONTROLLER – VERSION 1
MTRC037 Description EBMX X-9000 Motor Controller Version 1 Black
Revolutionise your electric bike ride with the EBMX X-9000 controller. Enjoy complete control over your ride with multiple power modes and adjustable speed limits. The customisable dashboard and compatibility with the SURRON ULTRA BEE to allow for seamless integration with your e-bike.
Available in Black.
Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.
• Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
• Multiple power modes and full adjustment in each mode
• Adjustable speed limits for different ride modes
• Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.
• Air-cooled heatsink as standard (comes in black, blue, red, or gold). The option of a water-cooled heatsink for high-powered builds is available.
• Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.
• Direct bolt-in for the Talaria Sting with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
• Full access to tunes for multiple motors for custom mx conversions or other motorcycle conversions (currently in progress and will be coming as we get the dyno testing and tuning completed)
• SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all the regular display info.
• Can be set up with a smartphone for the display or to check info as desired
• Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
• SurRon Ultra Bee
• KO RS Motor
• Talaria Sting
• Talaria Sting R
• Surron Light bee

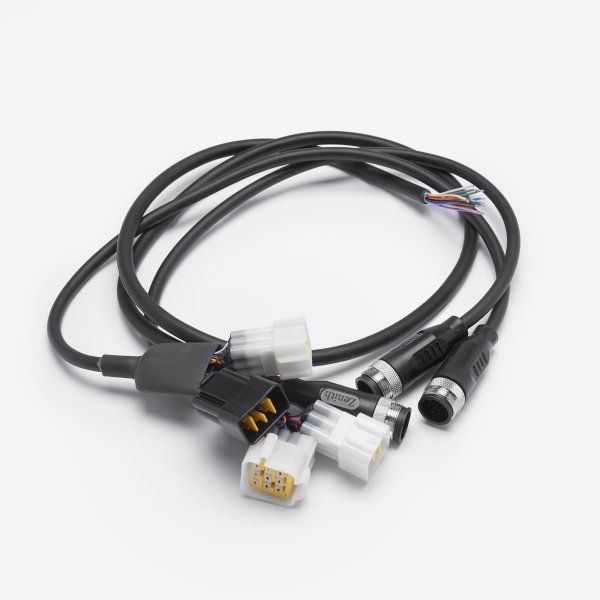

Surron Ultra Bee requires a Harness part number BRCKT371 included in this kit.
Connector Type: Male
Features: Easy Installation
Input Connection: Supply Voltage & Ground
Reference OE/OEM Number: 119900149
Terminal Type: Pin
Type: DC Motor controllers
