SURRON ULTRA BEE TRIPLE CLAMP ASSEMBLY

Description

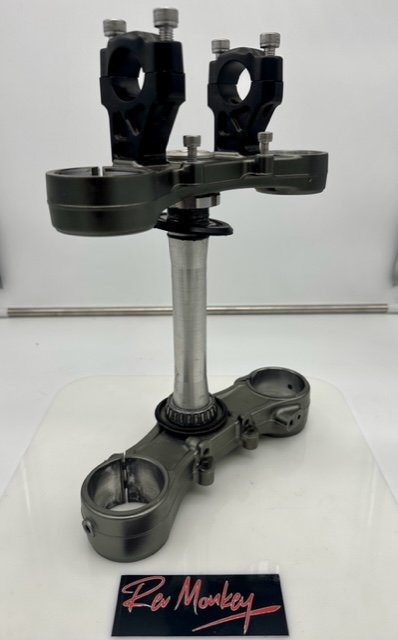

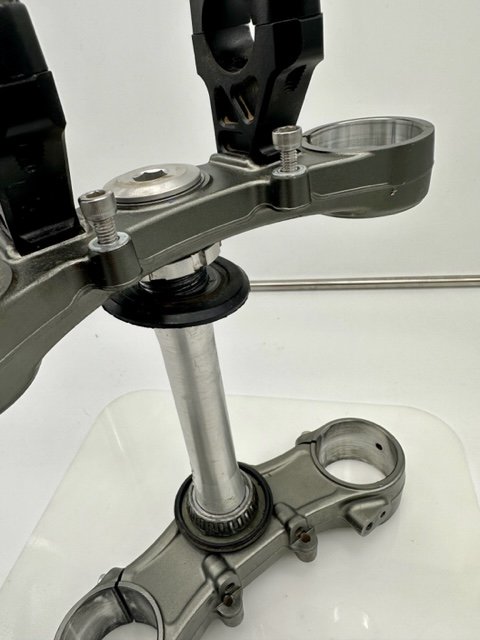

SURRON ULTRA BEE TRIPLE CLAMP ASSEMBLY – Factory OEM complete triple clamp assembly includes upper and lower clamps, handle bar clamps, both upper and lower seals, lower half bearing, steering stem castellated lock nut and top hex bolt and all hex fixings. Removed from a new bike.

1. Steering Head Nut | Part number: 51123-YQ5A-0000
2. Steering Head Gasket TOP | Part number: 51131-YQ5A-0000
3. Triple Clamp TOP | Part number: 51121-YQ5A-0000
4. Battery Cap Protection Block | Part number: 32334-YQ5A-0000
5. Screw B3001 M6*25 | Part number: B3-001-06-025-F0
6. Steering Head Adjust Nut | Part number: 51133-YS1A-0000
7. Steering Head Cover | Part number: 51126-YS1A-0000
8. Bearing Z332906X d3047 | Part number: Z-32906X-47-30-12
   • 01-1 Bearing Z332906X d3047 | Part number: Z-32906X-47-30-12
9. Steering Head Support Gasket | Part number: 51127-YQ5A-0000
10. (Empty List Item)
11. (Empty List Item)
12. Triple Clamp BOTTOM | Part number: 51110-YQ5A-0000
