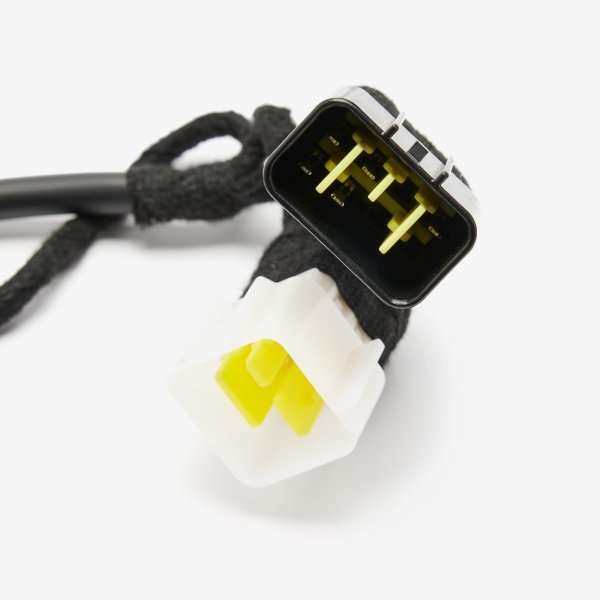

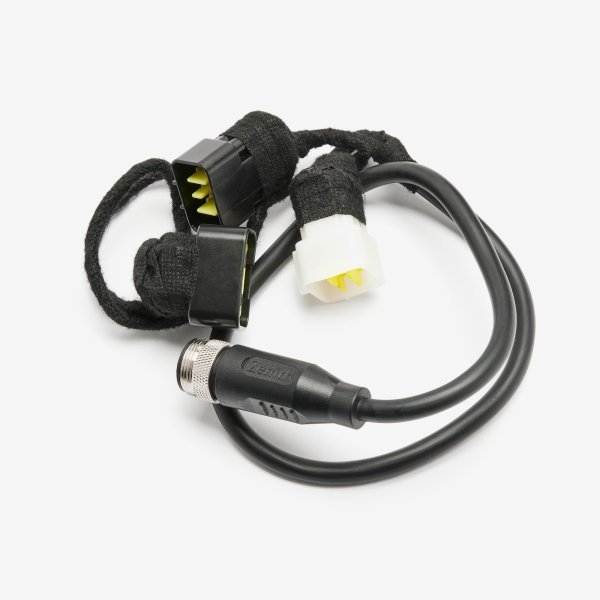

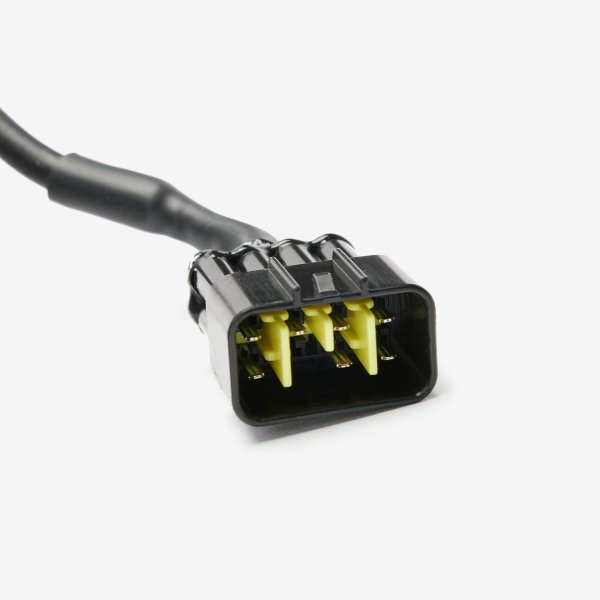

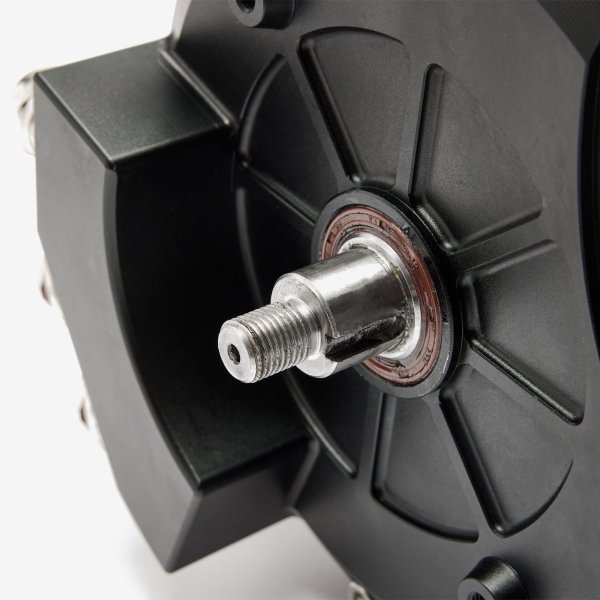

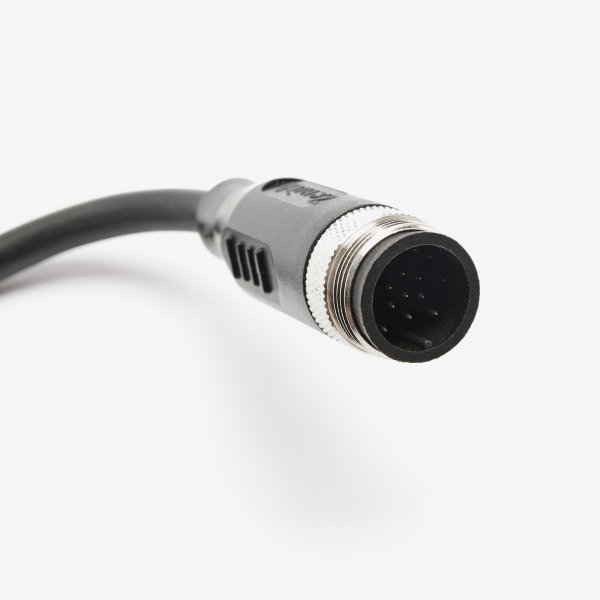

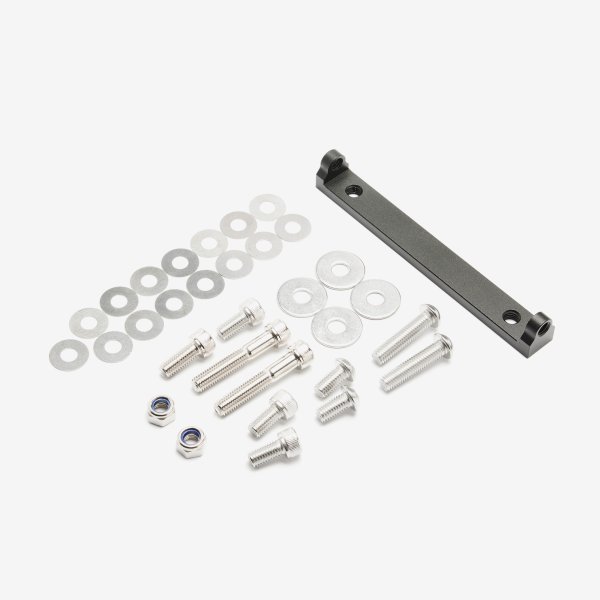

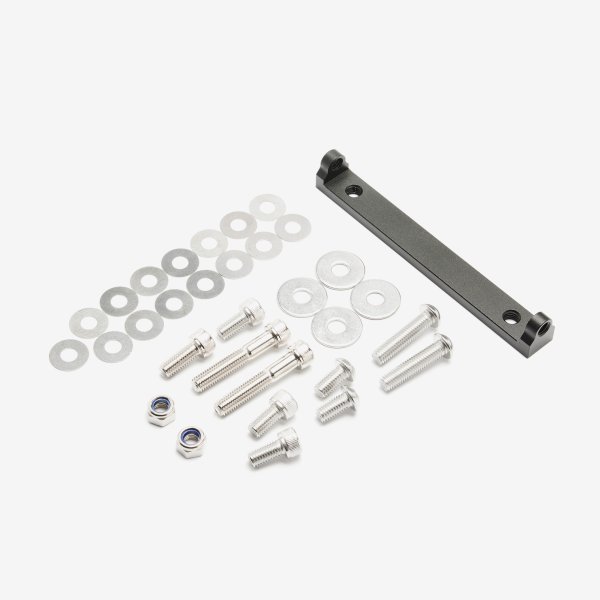

SURRON LIGHT BEE EBMX XLB 60 MOTOR– High performance 72V motor upgrade for your Surron Light Bee.Complete with fitting kit as per the images.

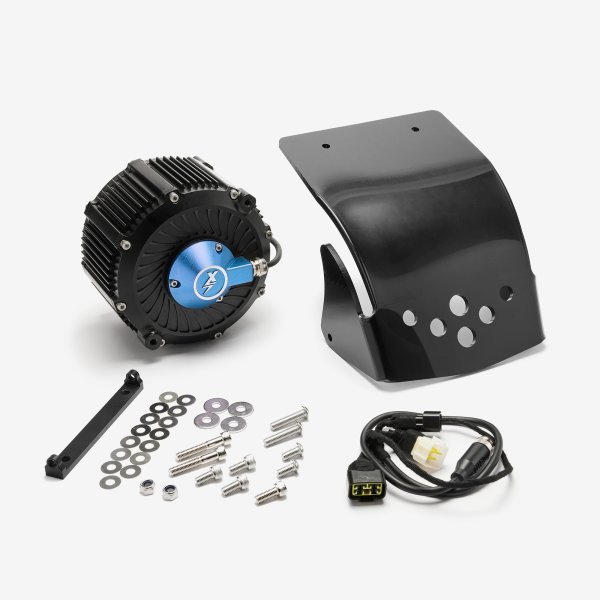

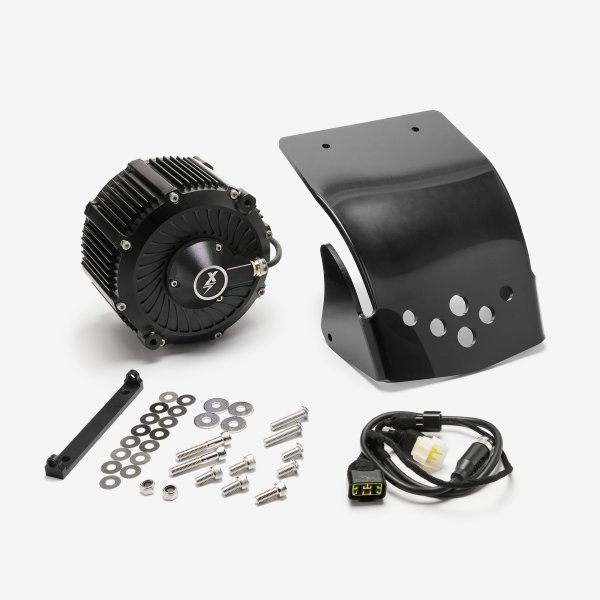

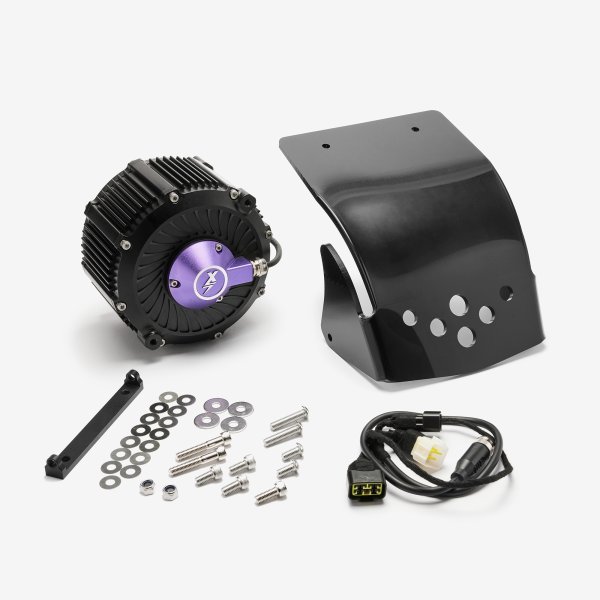

Available in 4 different cap cover colours : Blue / Red / Purple / Black
Description
Please be aware that when you purchase the EBMX XLB-60 Motor in your box will be an EBMX Custom Bash Plate at no extra cost. We guarantee this bash plate will fit with your motor. We cannot guarantee any other bash plate will fit.
35KW rated and tested, designed from the ground up to handle the heat, 180C rated windings with U42H magnets
Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000 RPM. Encoder based motor control for increased low end torque response and smooth predicable power delivery.
Built to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.
The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.
In contrast to many of our competitors who utilize hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a “sensorless” manner. However, during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments, hall sensors angle detection can result in substantial current spikes in the controller. This can pose significant issues for many controllers, leading to tripping and loss of throttle power, although this is less prevalent in the X-9000.
Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.
EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller.
Code: MTR021PLU: 40112
Brand: EBMX
Current Type: DC
Manufacturer Part Number: MTR021
Manufacturer Warranty: Lifetime Warranty
Maximum Power: 72 VMaximum
RPM: 10001 RPM – 15000
RMounting Style: Clamp-On
Peak Torque: 0 Nm – 500 Nm
Performance Part: Yes
Reference OE/OEM Number: 116000120
Type: Drivetrain Motor
Universal Fitment: No
Voltage: 72 V
